FREE TWO-PANEL DOOR PLAN AND ELEVATION DWG — FRONT ELEVATION 900 X 2100 MM

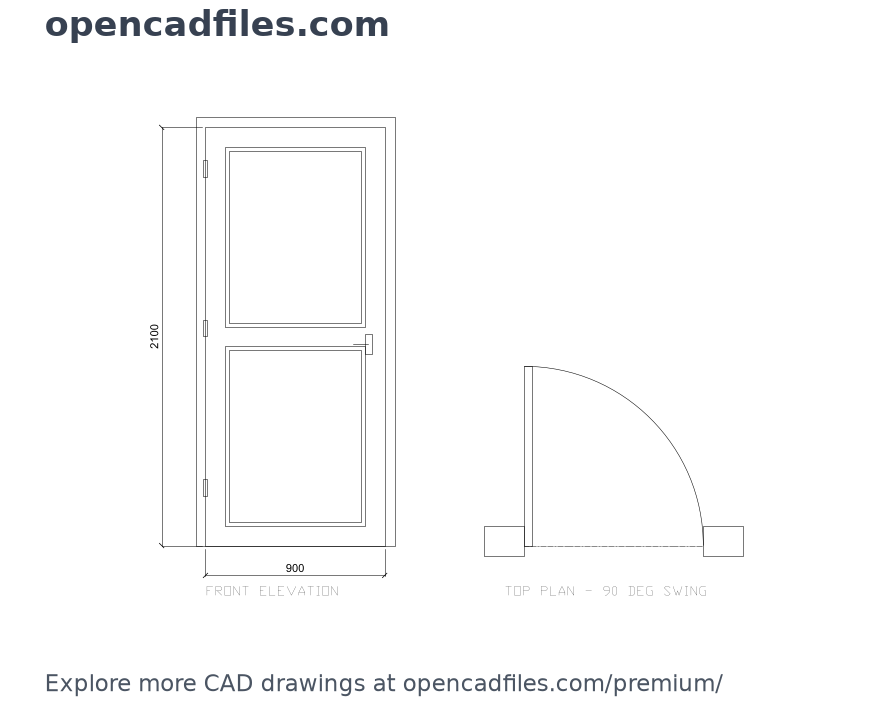

This free two-panel door elevation dwg shows a two-panel internal door with front elevation and top plan views. The drawing displays a 900 mm door leaf width, 2100 mm leaf height, three hinge positions on the left and a 90° swing arc in the top plan. Use this free two-panel door elevation dwg on a residential door schedule or interior elevation sheet to coordinate the recessed panels with the plan opening. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download instantly.
• Views Included: Front Elevation, Top Plan View
• Pro Standards: Drawn to real-world architectural proportions.
• Ready to Use: Drawn at 1:1 metric scale with clear hinge positions and a 90° swing arc so it fits directly into door schedules and plan drawings for residential interior layouts.

Technical Specifications:

Detail	Info
File Format	.DWG — AutoCAD 2010+, AutoCAD LT, BricsCAD
Measurement System	Metric (millimetres)
Scale	1:1 (real-world units)
Layer	Organized Layers
Category	Architecture Elements / Doors

Frequently Asked Questions

Q: What programs can open this DWG file?

A: The DWG file was saved for AutoCAD 2010 and opens in AutoCAD 2010+, AutoCAD LT, and BricsCAD. Other DWG-capable editors that support AutoCAD 2010 format may also open it.

Q: What are the real-world dimensions of the door shown?

A: The door is drawn at 1:1 in millimetres: 900 mm wide and 2100 mm high, matching the dimensions shown on the front elevation.

Q: How do I download this DWG for free?

A: Click the download button below the specifications and wait for the download to start. No account, payment or sign-up is required.

Q: Does the top plan show the door swing direction and clearances?

A: The top plan shows the leaf at 90° to its closed position, with a quarter-circle swing arc around the hinge. The dashed line marks the closed position; it is not an accessibility clearance boundary.

Q: Where can I find more free DWG files?

A: OpenCADFiles hosts a growing library of free DWG drawings across many categories. Browse the site to find more door types, furniture, and landscape symbols for your projects.
