FREE DYNAMIC HINGED DOOR DWG — TOP PLAN VIEWS WITH ADJUSTABLE WIDTH MENUS

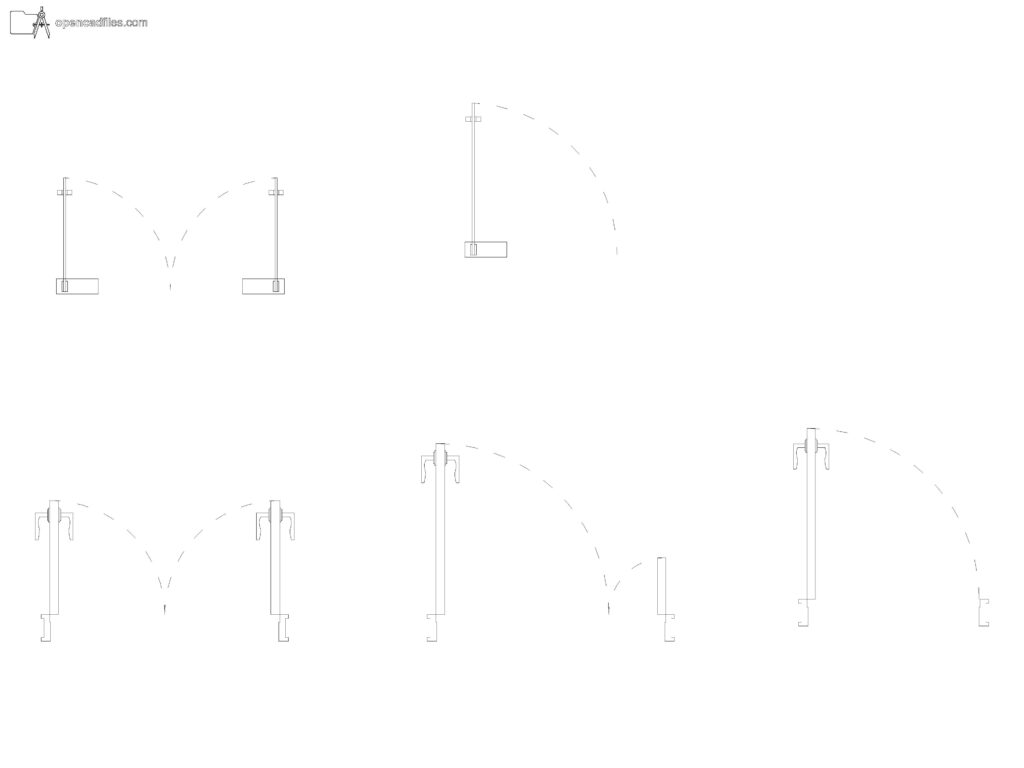

This free dynamic hinged door plan dwg provides a selection of adjustable single and double entry layouts for your drafting templates. Within the 2D CAD drawing, you can clearly see the dashed swing arcs and the numeric width parameters like “06 | 08 | 10” that allow you to stretch the panels. Inserting these pre-configured top plan views into your architectural floor plans saves time when detailing complex wall thresholds with varying frame thicknesses. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download instantly.
• Views Included: Top Plan View
• Pro Standards: Drawn to real-world architectural proportions.
• Ready to Use: The file includes detailed wall-wrapping frame profiles and asymmetric double leaf options that you can immediately align with your interior partitions.

Technical Specifications:

Detail	Info
File Format	.DWG — AutoCAD 2010+, LT, BricsCAD, LibreCAD
Measurement System	Metric
Scale	1:1 (real-world units)
Layer	Organized Layers
Category	Architecture Elements

Frequently Asked Questions

Q: Which AutoCAD versions and alternative programs open this file?

A: You can open this DWG file using AutoCAD 2010 or newer, AutoCAD LT, BricsCAD, LibreCAD, or any other standard CAD drafting program.

Q: What are the approximate dimensions of the doors in this drawing?

A: The visible numeric parameters correspond to standard metric widths such as 600mm, 800mm, and 1000mm for the single leaves, while the double doors indicate a 1200mm overall width. Everything is drafted at a precise 1:1 scale.

Q: How do I download this file for free?

A: Simply click the download button labeled

on this page to get the file instantly. You do not need to create an account or provide payment details.

Q: Does the drawing include the frame profiles that wrap around the wall?

A: Yes, the bottom row of the top plan views clearly details the intricate metal frame profiles that wrap around the wall corners, complete with the corresponding dashed swing arcs.

Q: Where can I find more free DWG files?

A: OpenCADFiles offers a wide library of 2D CAD drawings to help you build your architectural drafting sets. You can browse through our organized categories to find everything from detailed furniture components to full structural sections.
