FREE DYNAMIC DOOR WINDOW PLAN DWG — CYAN WIDTH TEXT AND 4-LEAF FOLDING DOOR

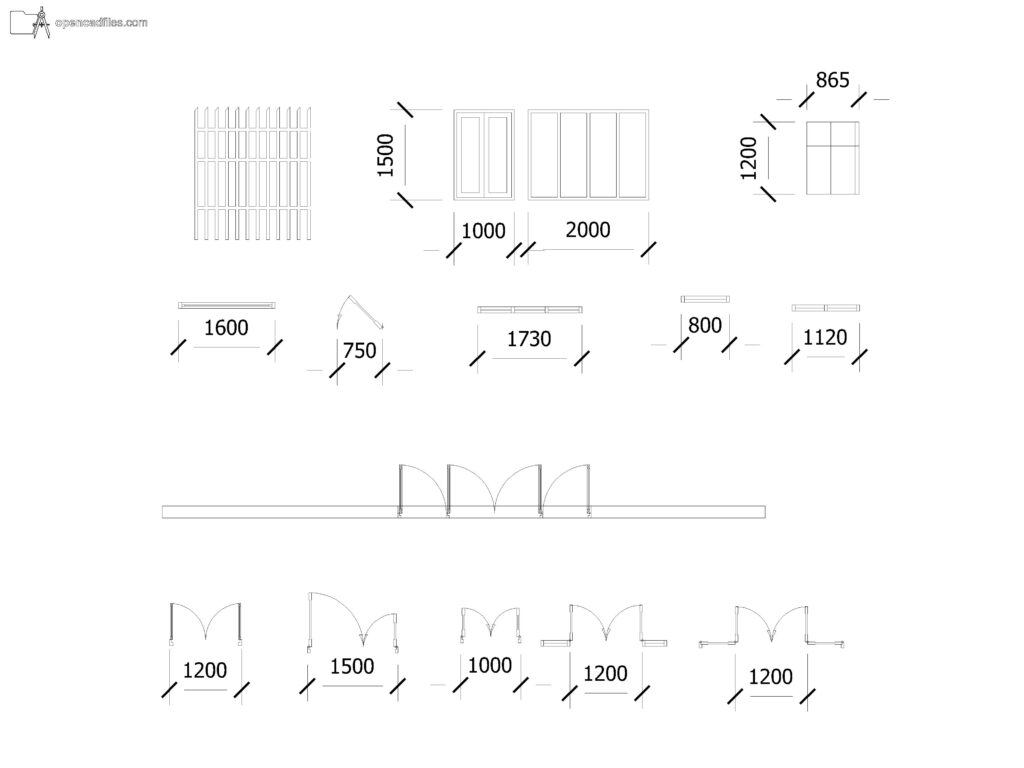

This free dynamic door window plan dwg provides an adjustable set of entryway and glazing components for your drafting templates. You can easily read the cyan text indicating specific widths like 1200mm for double doors and 1500mm heights for window elevations directly in the 2D CAD drawing. Inserting this free dynamic door window plan dwg into your floor plan sheets allows you to quickly lay out a 4-leaf folding partition or standard hinged entries without manually redrawing the swing arcs. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download instantly.
• Views Included: Top Plan View, Front Elevation
• Pro Standards: Drawn to real-world architectural proportions.
• Ready to Use: The file includes pre-drawn swing arcs for 750mm single and 1200mm double hinged doors, alongside a detailed 4-leaf folding door track to drop straight into your wall layouts.

Technical Specifications:

Detail	Info
File Format	.DWG — AutoCAD 2010+, LT, BricsCAD, LibreCAD
Measurement System	Metric
Scale	1:1 (real-world units)
Layer	Organized Layers
Category	Architecture Elements

Frequently Asked Questions

Q: Which software can I open this 2D CAD drawing with?

A: You can open this DWG file using AutoCAD 2010 or newer, AutoCAD LT, BricsCAD, LibreCAD, or any other standard CAD drafting program.

Q: What are the real-world dimensions shown in this drawing?

A: The drawing specifies multiple metric widths using cyan text, such as 750mm and 1200mm for the door plans, and window elevation heights reaching 1500mm. Everything is scaled precisely at 1:1 Metric.

Q: How do I download this file for free?

A: Simply click the download button labeled

on this page to get the file instantly. You do not need to create an account or provide payment details.

Q: Does the drawing show the individual panels for the folding door?

A: Yes, the central top plan view details a 4-leaf folding door mechanism positioned within a straight wall segment, clearly showing the open panel angles.

Q: Where can I find more free DWG files?

A: OpenCADFiles offers a wide library of 2D CAD drawings to help you build your architectural drafting sets. You can browse through our organized categories to find everything from detailed furniture components to full structural sections.
