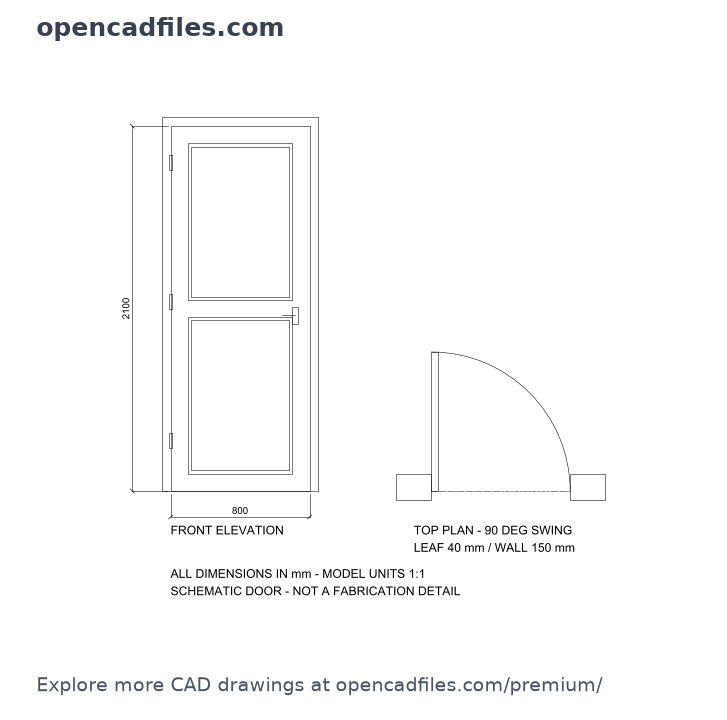

FREE 800mm two-panel door DWG — front elevation and top plan view

This free 800mm two-panel door dwg includes a front elevation and a top plan view showing a single-leaf door with two recessed panels. The drawing is in millimetres, model units 1:1, and shows the overall door size 800 mm wide by 2100 mm high together with a 90° swing arc and hinge positions. The dashed line marks the closed leaf position and the arc shows the open swing; leaf thickness is noted as 40 mm in the top plan. This free 800mm two-panel door dwg is organised on OUTLINE, DETAIL, DIMENSIONS and LABELS layers; the download starts after a brief timer. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download instantly.
• Views Included: Front Elevation, Top Plan View
• Pro Standards: Drawn to real-world architectural proportions.
• Ready to Use: Ready to use: DWG file contains 1:1 front elevation and top plan geometry for an 800 mm × 2100 mm two-panel door, hinge blocks, panel outlines, a 90° swing arc and dimension lines on separate layers.

Technical Specifications:

Detail	Info
File Format	.DWG — AutoCAD 2010+, AutoCAD LT, BricsCAD
Measurement System	Metric (millimetres)
Scale	1:1 (real-world units)
Layer	Organized Layers
Category	Architecture Elements / Doors

Frequently Asked Questions

Q: Which DWG software will open this file?

A: The drawing is saved for AutoCAD 2010 and is compatible with AutoCAD 2010+, AutoCAD LT and BricsCAD.

Q: What are the exact measured dimensions of the door and leaf?

A: Overall door size is 800 mm wide by 2100 mm high; the top plan notes the leaf thickness as 40 mm and the wall thickness shown as 150 mm.

Q: Is the download available immediately or after a timer?

A: The download becomes available after a brief timer; you do not need to sign up or pay.

Q: What does the dashed line and the arc in the top plan indicate?

A: The dashed line indicates the closed leaf position and the arc represents the 90° open swing for the door leaf.

Q: Where can I find more free DWG files?

A: You can find more free DWG files in the site's Doors category and other category listings linked from the downloads area.
