Free Wall Mounted Single Towel Rail DWG — Plan and Elevation

This free wall mounted single towel rail dwg includes a front elevation and top plan of one object. The free wall mounted single towel rail dwg uses millimetres at 1:1 model scale and organized drawing layers. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download after a short timer.
• Views Included: Front Elevation, Top Plan View
• Pro Standards: Drawn to real-world architectural proportions.

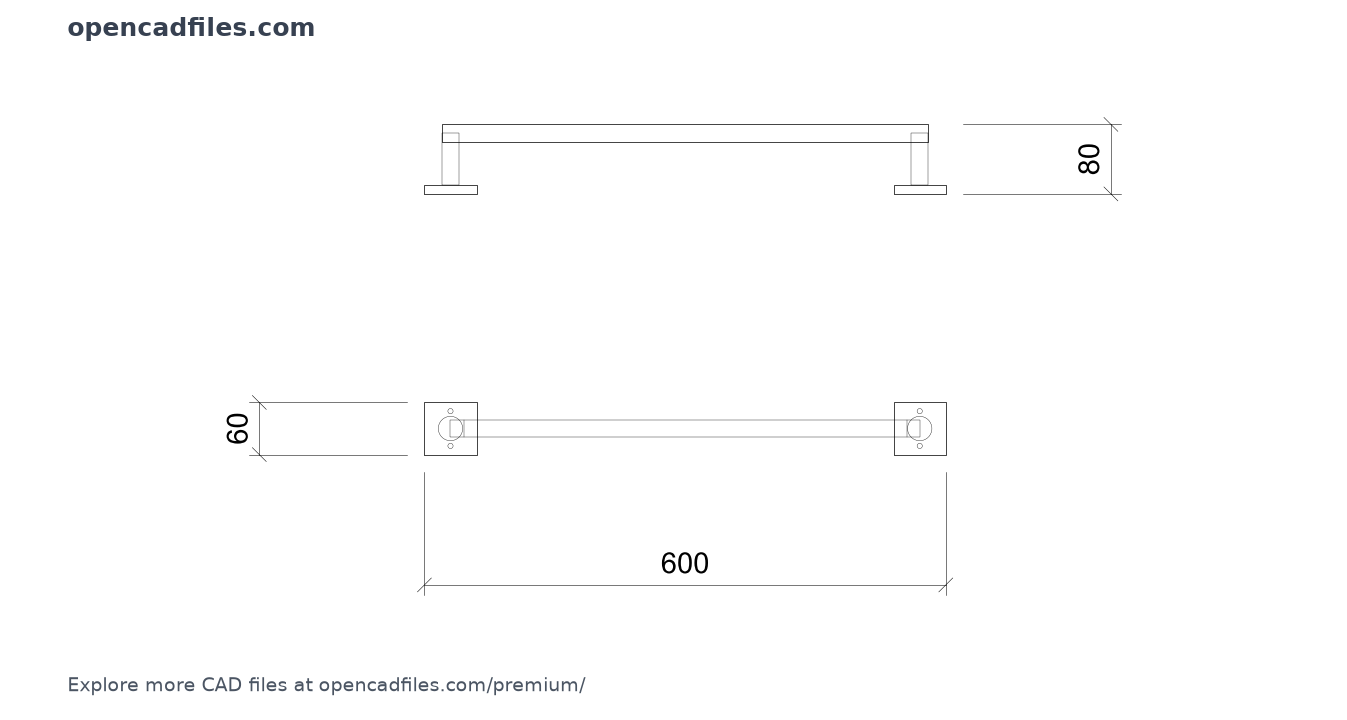

• Ready to Use: One straight round-profile towel rail, two square wall plates; schematic front and plan.

Technical Specifications:

Ready to download Free Wall Mounted Single Towel Rail DWG Download

Download now

Advertisement

Save to Pinterest

Frequently Asked Questions

Q: Which programs can open this DWG?

A: AutoCAD 2010 or newer, AutoCAD LT and BricsCAD support this file format.

Q: What are the drawing dimensions?

A: The annotated front-view width is 600 mm and height is 60 mm. The design depth is 80 mm.

Q: Is this a fabrication drawing?

A: No. This is a schematic architectural block, not an engineering or fabrication specification.

Q: How can I download the file?

A: Use the download button on this page. The download starts after the short timer; no account or payment is required.

Q: Where can I find more free DWG files?

A: Browse the OpenCADFiles categories for more architectural drawing blocks.
