FREE CONICAL HANGING CHAIR ELEVATION DWG — WITH SEATED FIGURE READING A BOOK

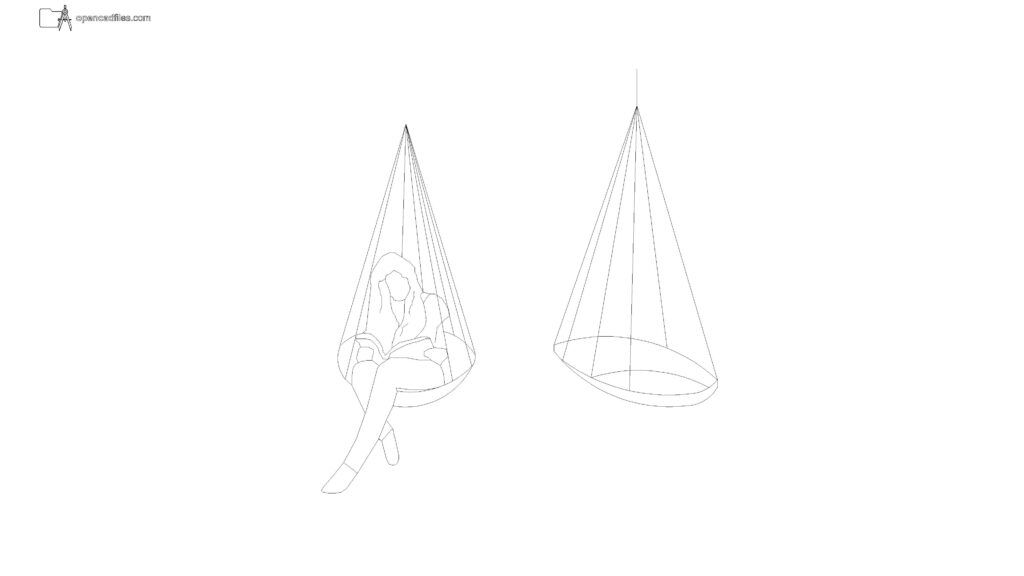

This free conical hanging chair elevation dwg offers a clean 2D CAD drawing of a suspended hammock-style seat. The drafting includes an empty chair alongside a second chair occupied by a silhouetted figure sitting cross-legged and reading an open book. You can insert this free conical hanging chair elevation dwg into your patio sections or indoor sunroom layouts to visually communicate the suspension cords and vertical clearance needed for a ceiling installation. No sign-up or payment required.

What’s Inside This DWG?

• 100% Free: No sign-up, no payment. Download instantly.
• Views Included: Front Elevation
• Pro Standards: Drawn to real-world architectural proportions.
• Ready to Use: The suspension ropes converging to a single hanging point allow you to accurately measure the ceiling drop required for installation in your interior or exterior elevation drafts.

Technical Specifications:

Detail	Info
File Format	.DWG — AutoCAD 2010+, LT, BricsCAD, LibreCAD
Measurement System	Metric
Scale	1:1 (real-world units)
Layer	Organized Layers
Category	Landscape and Outdoor

Frequently Asked Questions

Q: Which software versions are compatible with this DWG?

A: This file can be opened in AutoCAD 2010 and newer, as well as alternative CAD programs like BricsCAD and LibreCAD.

Q: What are the approximate dimensions of this hanging chair?

A: Drafted in metric at a 1:1 scale, the hoop base is approximately 800mm to 1000mm in diameter, with a suspension height tailored to standard ceiling clearances.

Q: How do I download this file for free?

A: Just click the download button provided on this page, and the file will save directly to your device.

Q: Does the drawing include both the empty chair and the reading figure?

A: Yes, the CAD file provides two side-by-side variations showing the empty conical rope structure and the chair in use by a person holding a book.

Q: Where can I find more free DWG files?

A: OpenCADFiles provides a growing library of organized 2D CAD drawings for architecture students and professionals. You can browse our categories to find furniture, people silhouettes, and planting details for your drafting sheets.
