Are you planning to design a new kitchen, bathroom, or laundry room? If yes, you need to know the exact sizes of your appliances. Getting the right washing machine drawing dimensions is the first and most important step for a perfect home plan.
In this guide, we will explain the standard sizes of washing machines. This will help you easily draw your 2D or 3D plans without any mistakes.

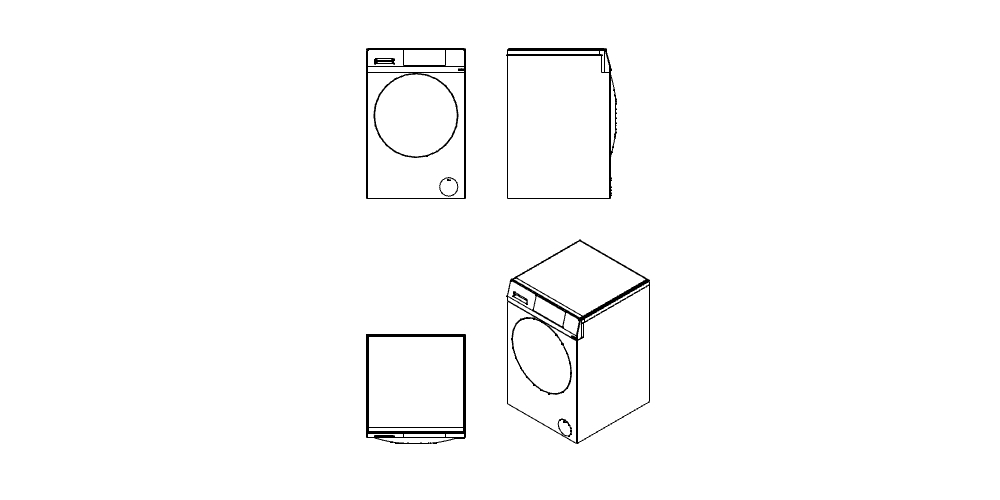

Standard Front Load Washing Machine Dimensions
Front-load washing machines are very popular in modern homes. They usually fit perfectly under kitchen counters. If you are making a drawing, you should use these average sizes:
- Width: 60 cm (23.6 inches)
- Depth: 55 cm to 60 cm (21.6 to 23.6 inches)
- Height: 85 cm (33.4 inches)
Design Tip: When you look for front load washing machine dimensions for cabinets, remember to leave some extra space. Do not draw the cabinet exactly 60 cm wide.
Standard Top Load Washing Machine Dimensions
Top-load washing machines open from above. Because of this, you cannot put them under a standard kitchen counter. They are usually a bit larger than front-load models.
- Width: 60 cm to 70 cm (23.6 to 27.5 inches)
- Depth: 60 cm to 70 cm (23.6 to 27.5 inches)
- Height: 90 cm to 110 cm (35.4 to 43.3 inches)
If you are looking for top load washer dimensions in cm for your architectural drawings, make sure you leave enough empty space above the machine to open the door comfortably.
Important: Space Needed for Plumbing and Airflow
A very common mistake in interior design drawings is forgetting the back space. A washing machine is not just a simple box. It needs water pipes and electrical cables behind it.
When you calculate the washing machine cabinet cutout size, you must add:
- At the back: At least 5 cm (2 inches) for water hoses and plugs.
- On the sides: 2 cm (0.8 inches) on the right and left sides to stop vibrations and noise.
- At the front: At least 100 cm (39 inches) of free space to easily open the door and put your clothes inside.
Why Accurate 2D and 3D CAD Block Sizes Matter
If you are an architect, an interior designer, or just a homeowner using a planning app, correct measurements save you time and money. Using the exact depth and width of a washing machine for planning ensures that your cabinet doors will close properly and the machine will not stick out.
Conclusion
Always check the brand’s manual before you finalize your drawings. Every brand can have small differences in size. However, using these standard washing machine drawing dimensions will give you a great head start for your beautiful room design!
