The Ultimate Guide to Standard Picnic Table Drawing Dimensions

If you are designing a beautiful park, a restaurant garden, or a cozy backyard, you will probably need to add outdoor furniture. The classic A-frame wooden picnic table is the most popular choice for these spaces.

If you want to draw it yourself in your architectural plans, you need accurate measurements. In this guide, we will share the standard picnic table drawing dimensions and explain how to draw its plan and elevation views easily.

Standard Wooden Picnic Table Dimensions in cm

The classic 6-person picnic table has standard sizes to make sitting and eating comfortable. When you create your 2D CAD blocks or 3D landscape models, use these real-world measurements:

• Table Top Length: 180 cm (72 inches)
• Table Top Width: 75 cm (30 inches)
• Overall Width (Table + Benches): 150 cm (60 inches)
• Table Height from Floor: 75 cm (30 inches)
• Bench Seat Height: 45 cm (18 inches)
• Bench Seat Width: 30 cm (12 inches)

Using the correct height and width of a standard picnic table guarantees that your outdoor projects will look highly realistic.

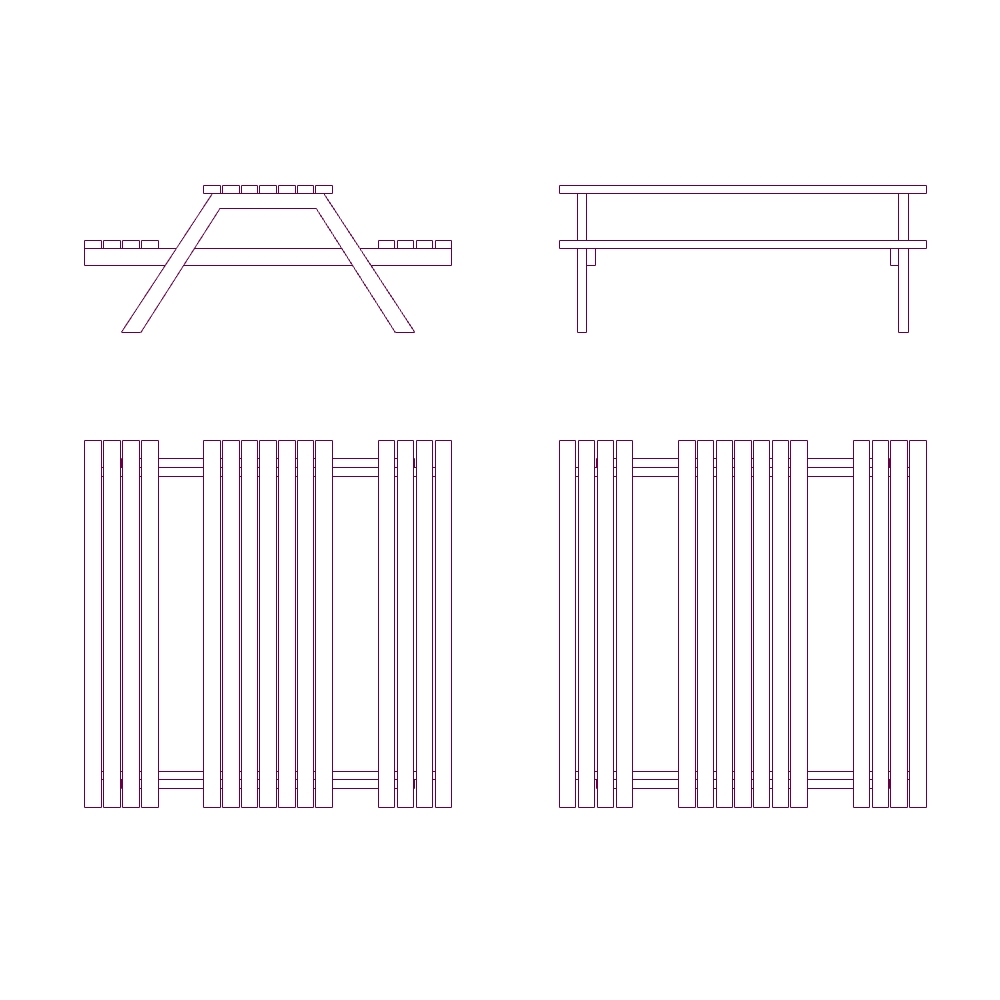

How to Draw a Picnic Table Top Plan View (2D)

Drawing the top view of a picnic table for your site plan is very simple. Just follow these easy steps:

Step 1: Draw the Table Top In the center, draw a large rectangle. Make it 180 cm long and 75 cm wide.

Step 2: Leave Space for Legs People need space to put their legs. Leave an empty gap of about 10 cm to 15 cm on both the long sides of the table.

Step 3: Draw the Benches Next to the gaps, draw two smaller rectangles for the benches. Make them 180 cm long but only 30 cm wide. This simple layout gives you a perfect 2D top plan view of a picnic table.

How to Draw a Picnic Table Side Elevation

The side view shows the famous “A-frame” legs. Here is how to draft it:

• Start by drawing an inverted “V” or “A” shape for the wooden legs.
• Draw a flat horizontal line at the top of the legs (at 75 cm height) for the table top.
• Draw the bench seats at 45 cm high, attached to the sides of the “A” frame legs.

Outdoor Planning Tip: Movement Space

Knowing the outdoor furniture 2D CAD drawing measurements is great, but do not forget the empty space around the table!

When you place a picnic table in your garden plan, always leave at least 100 cm (39 inches) of free space all around it. This allows people to walk behind the table and sit down easily without hitting each other.
